Reminders

• HW1 due next week
• Labs are counted as attendance! Make sure to submit them.
  • Correctness is not prioritized, just make sure you have things working locally

Agenda

1. Databases/Migrations
2. Why are migrations hard?
3. Migration ordering
4. Versioned migrations
5. Lab

Review of Databases

• When we interact with a database, we must first define a schema
• A schema defines the format of data we are storing, i.e. what tables, what columns, what relations, etc.
• Schemas are necessary in order for database to optimize their queries

Trade-Offs of Schemas

# Schema 1
class Cat:
  name
  breed
  litter_preference
class Dog:
  name
  breed
  ball_preference
class Gerbil:
  name
  breed
  seed_preference

# Schema 2
class Pet:
  name
  breed
  species
  attributes
class Attribute:
  name
  value

Migrations

• Inevitably, schemas will need to change
  • What if I want to add color to my pet db?
• The process of making changes to a schema is called a migration. Things that could be modified:
  • Table columns
  • Relationships (foreign keys)
  • Constraints (e.g. uniqueness)

Why are Migrations hard?

• Migration Ordering: Application code deployment needs to be coordinated with migrations
• Versioned Migrations: The changes needed depend on the current state of the database
• Depending on the type of change, migrations can potentially lock databases entirely while they occur
• Large systems may have multiple databases that need to have coordinated migrations
• If migrations alter not just the schema but also data, rollbacks are complex if something goes wrong

Migration Ordering

Example: Data Addition

• Let's say we want to add new data to our pet database to match a pet to their owner. Additionally, we want to add a new section in the frontend to display this owner.
• What do we need to add to our database schema?
• What do we need to add to our application code?

Example: Data Addition

• We need to add a new table for Owner, which Pet has a foreign key to
• We need to make changes on the backend to deliver this new data, and also changes on the frontend to display this data
• What could happen if we deploy the code before the migration is done?

Example: Data Deletion

• Now let's imagine the opposite sort of change, we want to remove the Owner table.
• What do we need to change in our database schema?
• What do we need to change in our application code?

Example: Data Deletion

• Need to remove Owner table along with foreign key on Pet table
• Need to change backend code to no longer send owner, and also have the frontend no longer display this data
• What could happen if we make the migration before the code is deployed?

Code First Migrations

Data First Migrations

Versioned Migrations

• Historically, migrations were manually run, e.g. SSHing into the database, copy pasting some SQL commands and hoping it worked without issues
  • The easy way out was to just take scheduled downtime
• We've identified how to ensure this plays nicely with the current application code, but what else is not great about this?
  • We need to know the current state of the database before we know what changes to apply
  • Manual work is not ideal, e.g. run migrations, then trigger application deployment

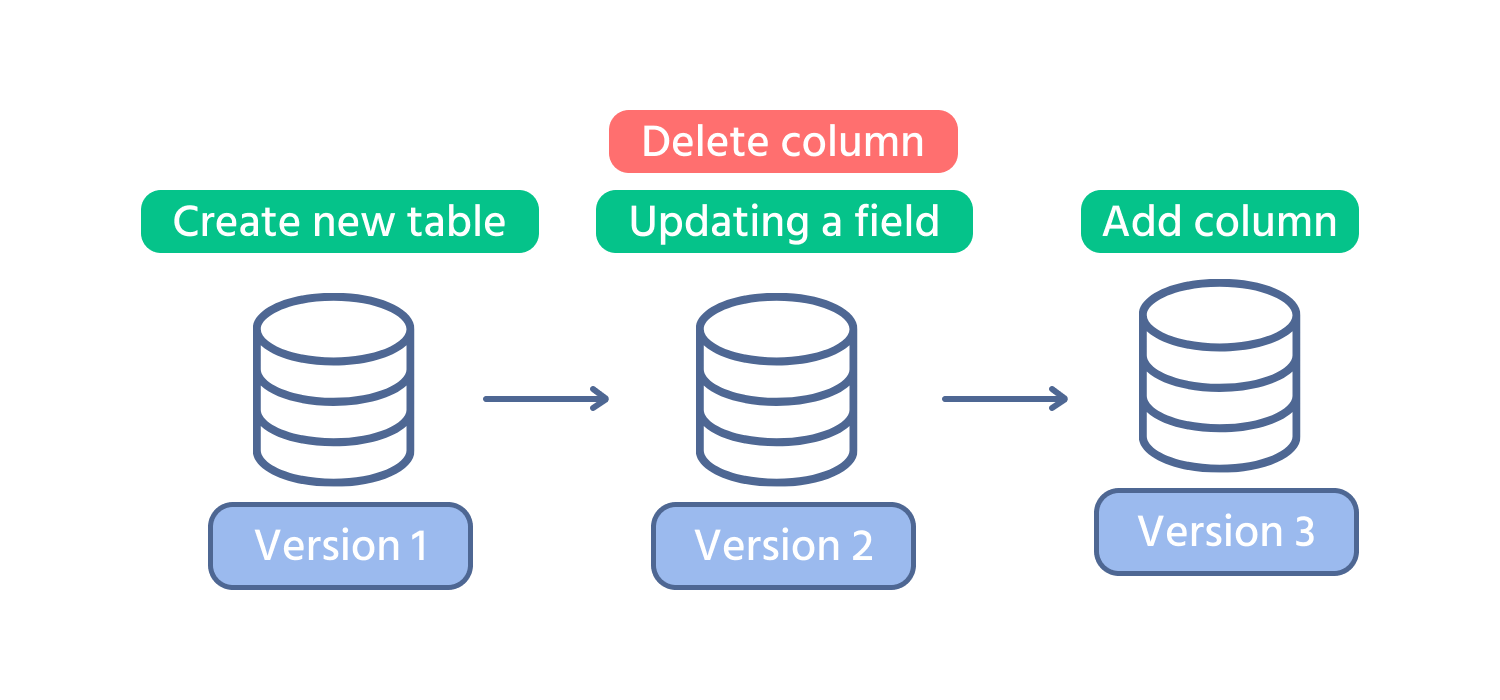

Versioned Migrations

• Idea: let's track migrations as code. Each migration can be thought of as a version update.
• We assume the initial state of the database is completely empty, and each migration is a file that transitions the state of the database. These files form a sort of linked list since they depend on each other.
• We can track the current state of the database in the database!
  • A table called Migrations can track the current files/transitions applied.

Versioned Migrations

Migrations then are applied with the deterministic process:

1. Look at Migrations table to determine current state
2. Compare to migration files we have
3. Apply new migration files in order

Versioned Migrations

Migrations in Practice

• Now, we can combine these two concepts to implement auto-migrations on deployment
• Many packages exist for versioned migrations, we'll be using alembic
• We'll create a manual method to migrate locally since there's no notion of deployment yet
• We'll revisit this later when we start looking at Kubernetes
